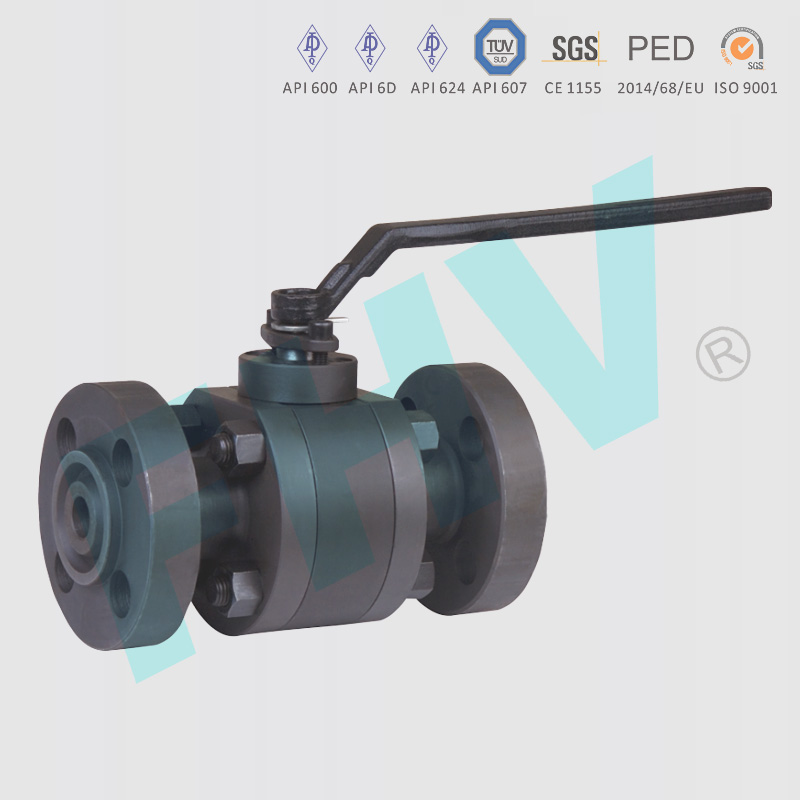

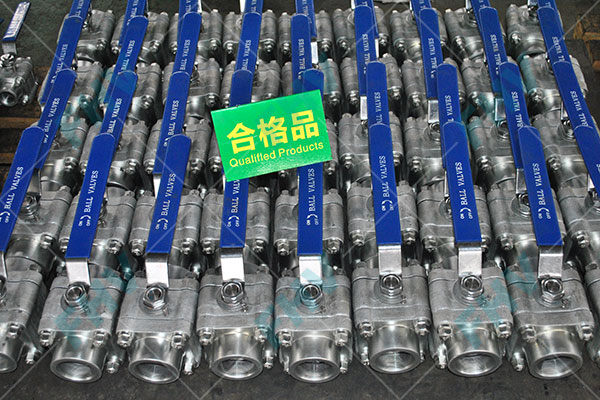

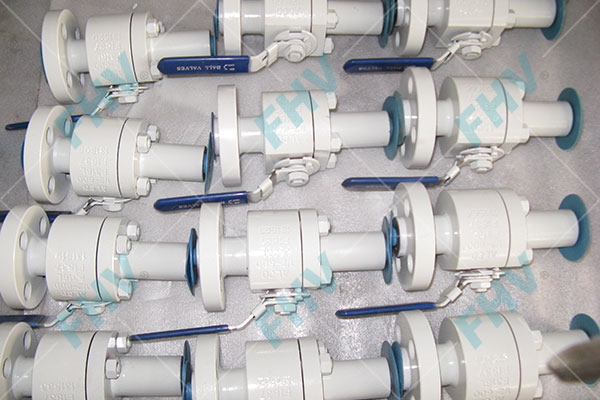

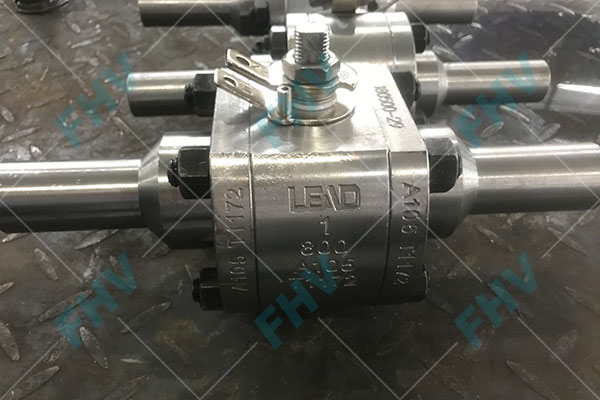

Forged Steel Ball Valve

Forging split body, full bore/reduced bore, floating ball, fire-safe certified to API-607/6FA, anti-blow out stem, cavity relieving seats, anti-static device, RTFE, Delrin, NYLON&DEVLON seat inserts, designed and tested according to ASME B16.34, BS5351 and API-6D.

Manufacturing Standards

Size: NPS 1/2"~12"
Pressure Rating: Class 150~1500
Material: A105, LF2, F304, F316,F304L, F316L
Design & Manufacturing Standard: API 608, API 6D, BS 5351, ASME B16.34
Face to Face: ASME B16.10, API 6D, BSEN 558
End Connection: ASME B16.5, BSEN 1092
Test and Inspection:
ISO 5208, API 6D, BSEN 12266
Operation Method:
Manual ,Worm Gear, Electric Actuator,
Pneumatic Actuator
